350m3/H Ultra Thin Graphene Central Fresh Air Purifier H13 Class

MOQ:	200
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model NO.:

H702/H702G H702J/H702GJ

Layout:

Coaxial

Openness:

Closed

Installation:

Vertical

Transmission Form:

Gear

Type:

Flange

Weight:

35kg

Noisy:

44dB

Language:

English

Purification Class:

Class H13

Transport Package:

Wood

Specification:

960*700*225mm

Trademark:

Shiny-greenspace

Origin:

China

HS Code:

8419500090

Production Capacity:

200000

Packaging Details:

Depends on equipment sizes

Highlight:

350m3/H Central Fresh Air Purifier

350m3/H Central Ventilation System

Full Heat Exchange Central Ventilation System

Product Description

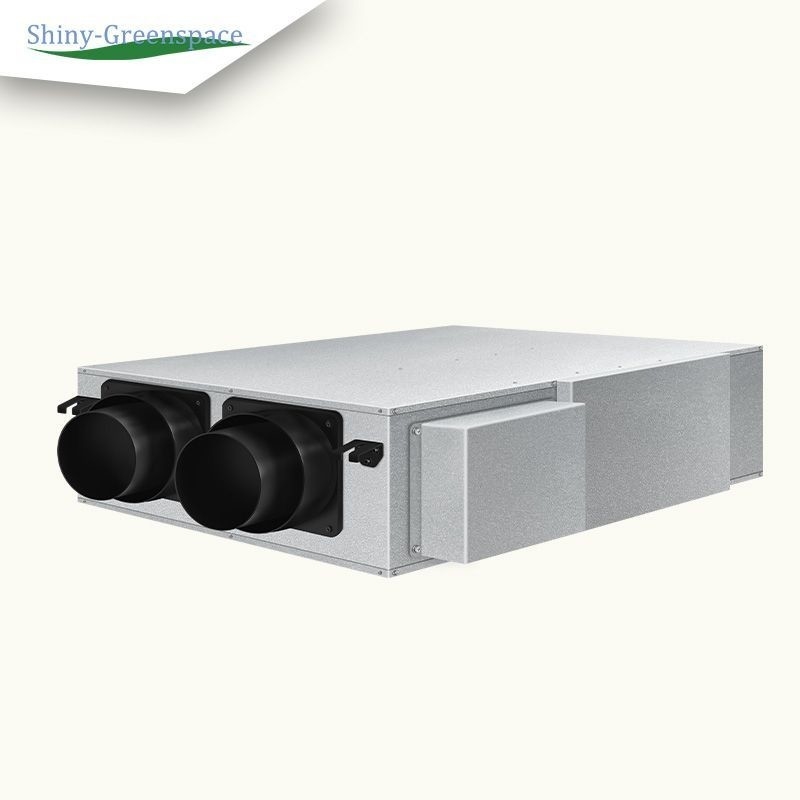

350m³/H Ultra Thin Graphene Central Fresh Air Purifier H13 Class

350m³/H Central Fresh Air Purifier with Ultra Thin Graphene Full Heat Exchange. Minimum order in large quantities.

Product Specifications

Attribute	Value
Model NO.	H702/H702G H702J/H702GJ
Layout	Coaxial
Openness	Closed
Installation	Vertical
Transmission Form	Gear
Type	Flange
Weight	35kg
Noise Level	44dB
Language	English
Purification Class	Class H13
Transport Package	Wood
Specification	960700225mm
Trademark	shiny-greenspace
Origin	China
HS Code	8419500090
Production Capacity	200,000 units

Key Features

Feature	Specification
Fresh airflow volume	350m³/h
Exhaust volume	280m³/h
Purification class	Class H13
Purification efficiency	>99.9%
Noise value	<44dB(A)
Heat exchange rate	Compatible with GB21087 standards
Control mode	Intelligent operation/touch control
Applicable space	350m³

Ultra-thin design: Only 225mm thick for better hidden ceiling installation and space saving.

Triple Filtration System

Features HEPA high efficiency filtration with initial, medium, and high efficiency triple-stage purification. Effectively filters PM2.5, dust, and 20.3μm particulate matter while intercepting bacteria and viruses with 99.9% purification efficiency.

Triple Filtration System

Ultra-Thin Design

Central Fresh Air Purifier

The fresh air system delivers oxygen-rich outdoor air into rooms after multiple filtration stages while simultaneously exhausting indoor pollutants. Maintains clean, fresh indoor air quality through continuous 24-hour air exchange.

System Operation Diagram
