Vertical 48dB Air Purifier Ventilation System Wall Mounted Ventilation System Class H13

MOQ:	200
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model NO.:

H101

Layout:

Coaxial

Openness:

Closed

Installation:

Vertical

Transmission Form:

Gear

Type:

Flange

Weight:

3kg

Noisy:

48dB

Language:

English-Chaese

Purification Class:

Class H13

Transport Package:

Wood

Specification:

420*330*120mm

Trademark:

Shiny-greenspace

Origin:

China

HS Code:

8419500090

Supply Ability:

200000

Packaging Details:

Depends on equipment sizes

Highlight:

48db air purifier ventilation system

wall mounted ventilation system class h13

vertical air purifier ventilation system

Product Description

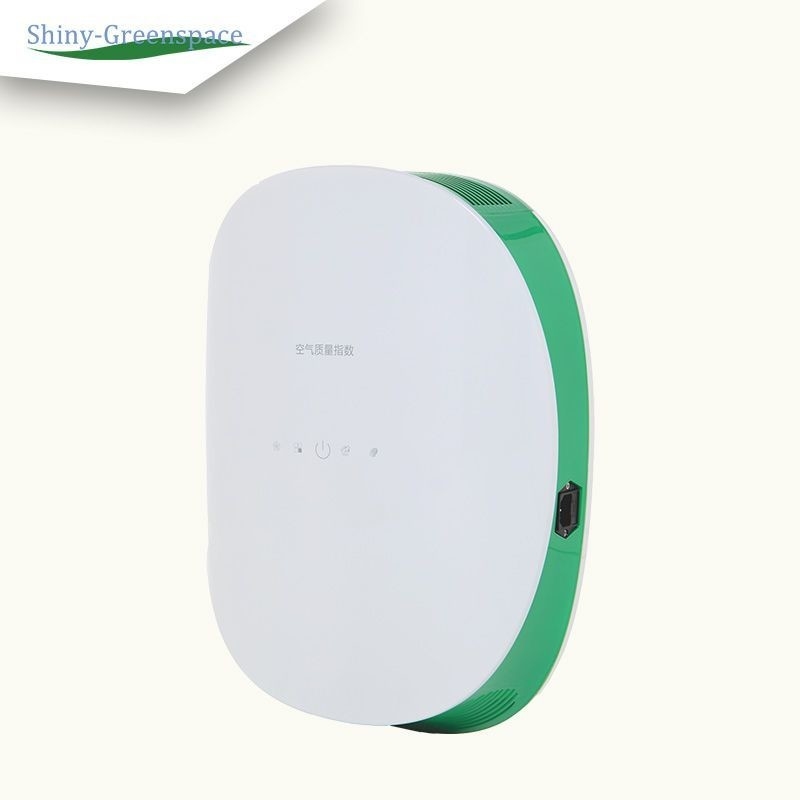

Vertical 48dB Air Purifier Ventilation System - Wall Mounted Class H13

[Minimum order in large quantities] 60m³/H 25W Positive Pressure Air Purifier Wall Mounted Ventilation System with H13 HEPA filtration.

Product Specifications

Attribute	Value
Model NO.	H101
Layout	Coaxial
Openness	Closed
Installation	Vertical
Transmission Form	Gear
Type	Flange
Weight	3kg
Noise Level	48dB
Language	English-Chinese
Purification Class	Class H13
Transport Package	Wood
Specification	420330120mm
Trademark	shiny-greenspace
Origin	China
HS Code	8419500090
Supply Ability	200,000 units

Technical Parameters

Parameter	Value
Fresh airflow volume	60m³/h
Operating power	25W
Purification class	Class H13
Purification efficiency	>99.9%
Noise value	<48dB(A)
Heat exchange rate	Compatible with GB21087 standards
Control mode	Intelligent operation/touch control/remote control
Applicable space	30m³ (calculated at 2 air changes per hour)

Key Features

Advanced Filtration System: H13 HEPA high efficiency purification with triple filtration, intercepting PM2.5, bacteria, and 20.3μm particulate matter with >99.9% efficiency. Cold catalyst adsorption efficiency for formaldehyde reaches 90%.
Temperature Regulation: Two-way cold and heat exchange technology minimizes temperature difference between incoming and outgoing air.
Energy Efficient Design: Patented air cavity structure combines three effects in one unit. Consumes less than 1kWh for 24 hours in silent mode.
Optimized Airflow: 45-degree angle air design incorporates fluid mechanics principles for 360° circulation without dead zones.
Continuous Fresh Air Supply: Filters indoor air while introducing oxygen-rich outdoor air to reduce CO₂ levels.

Note: This wall-mounted flange H101 positive pressure air purifier combines fresh air supply with intelligent energy-saving technology for superior indoor air quality.
